Wall Double Decker - 2 Tier
Wall Double Decker - 2 Tier

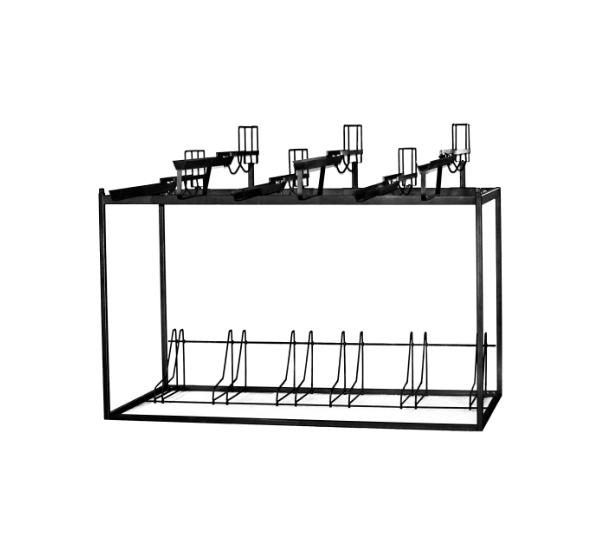

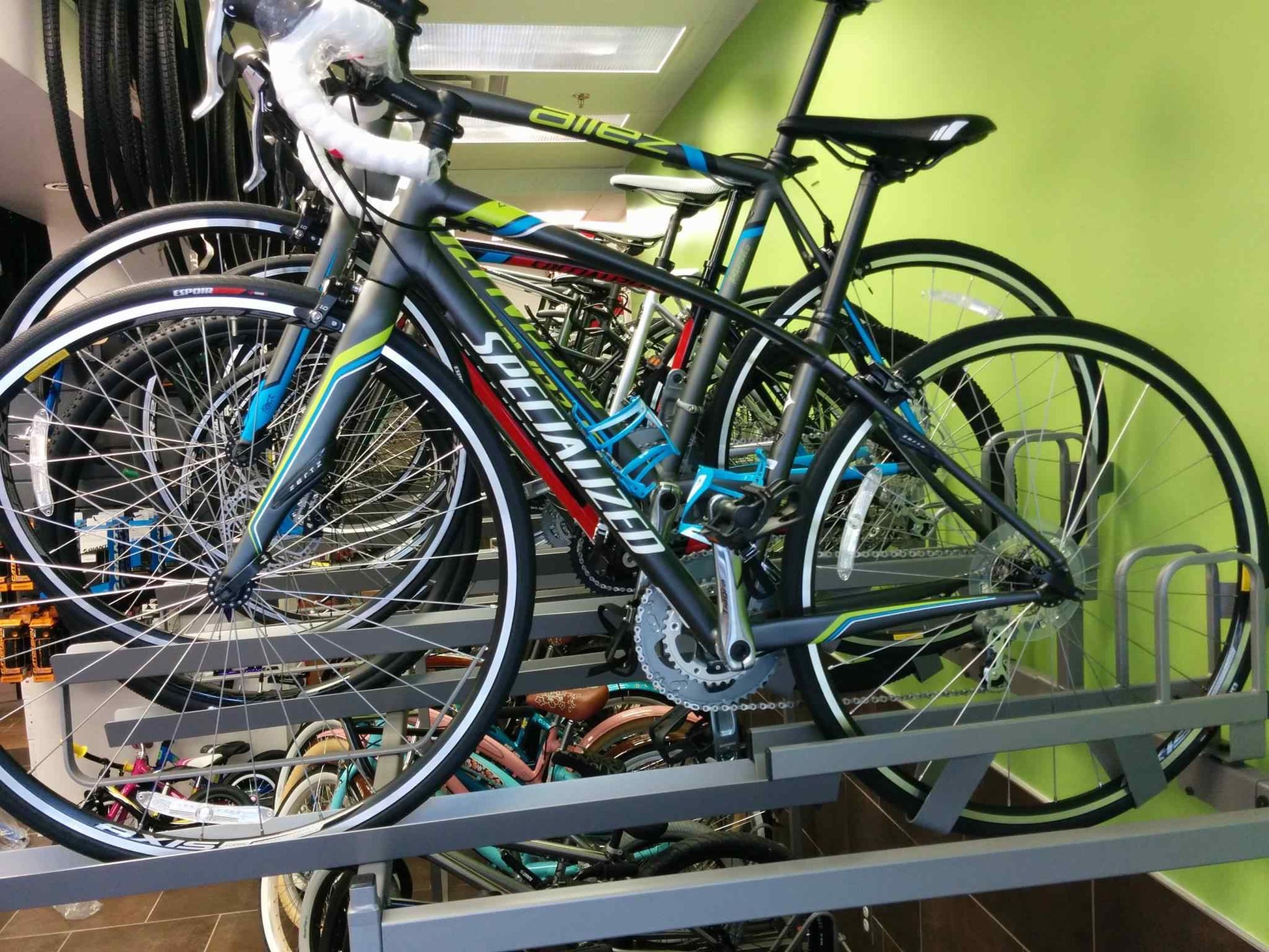

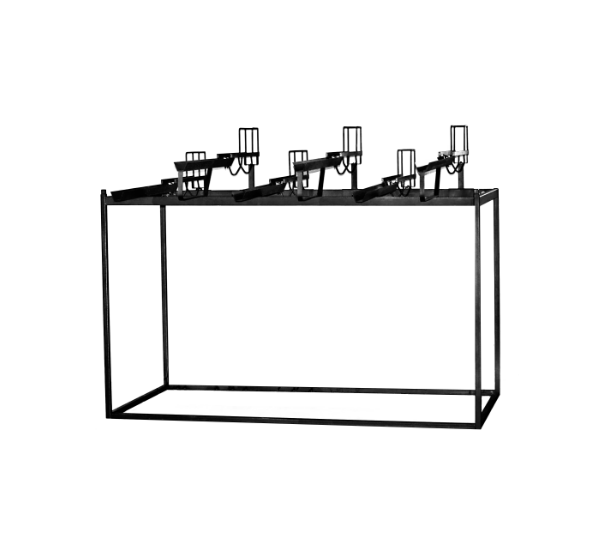

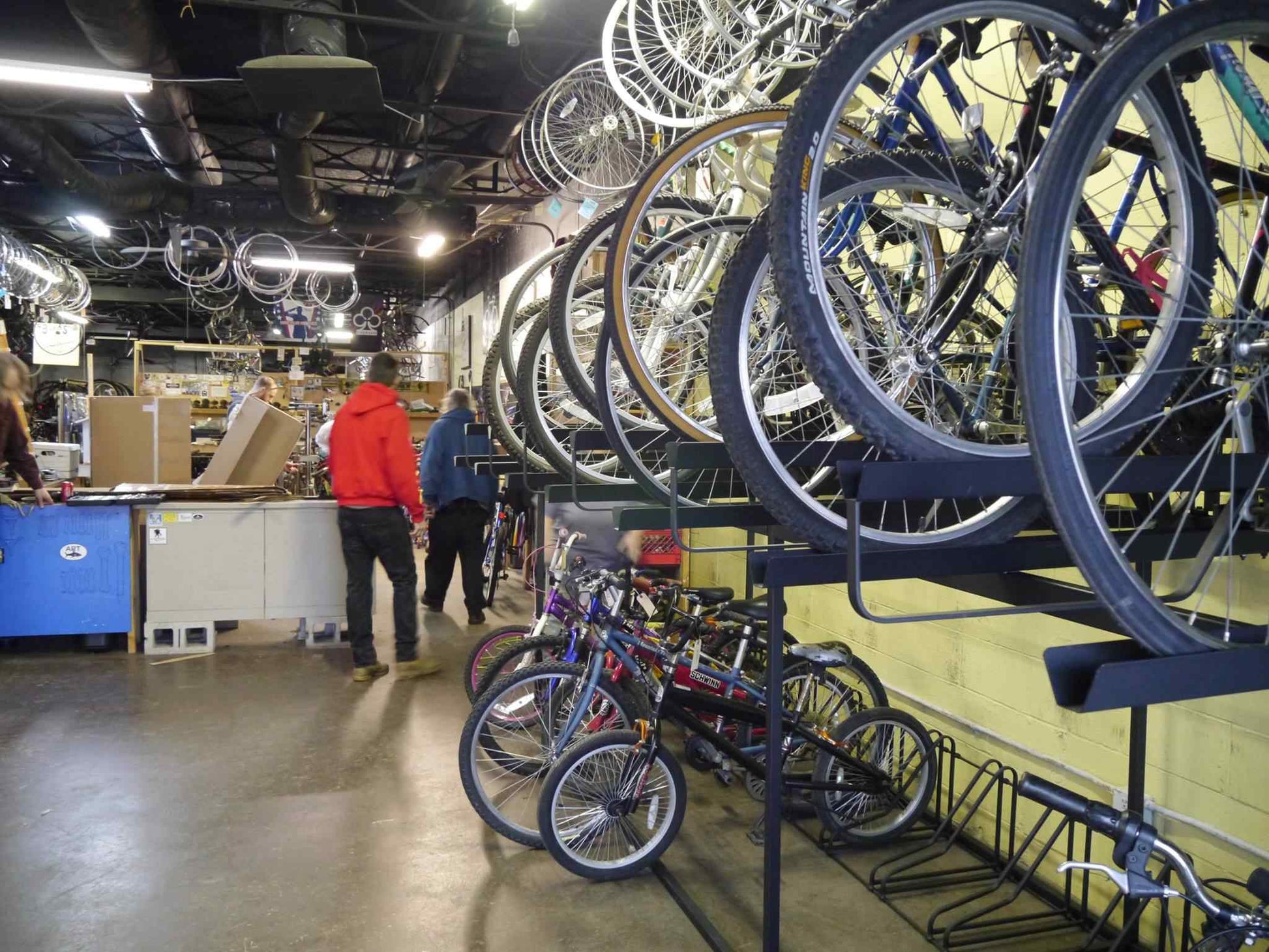

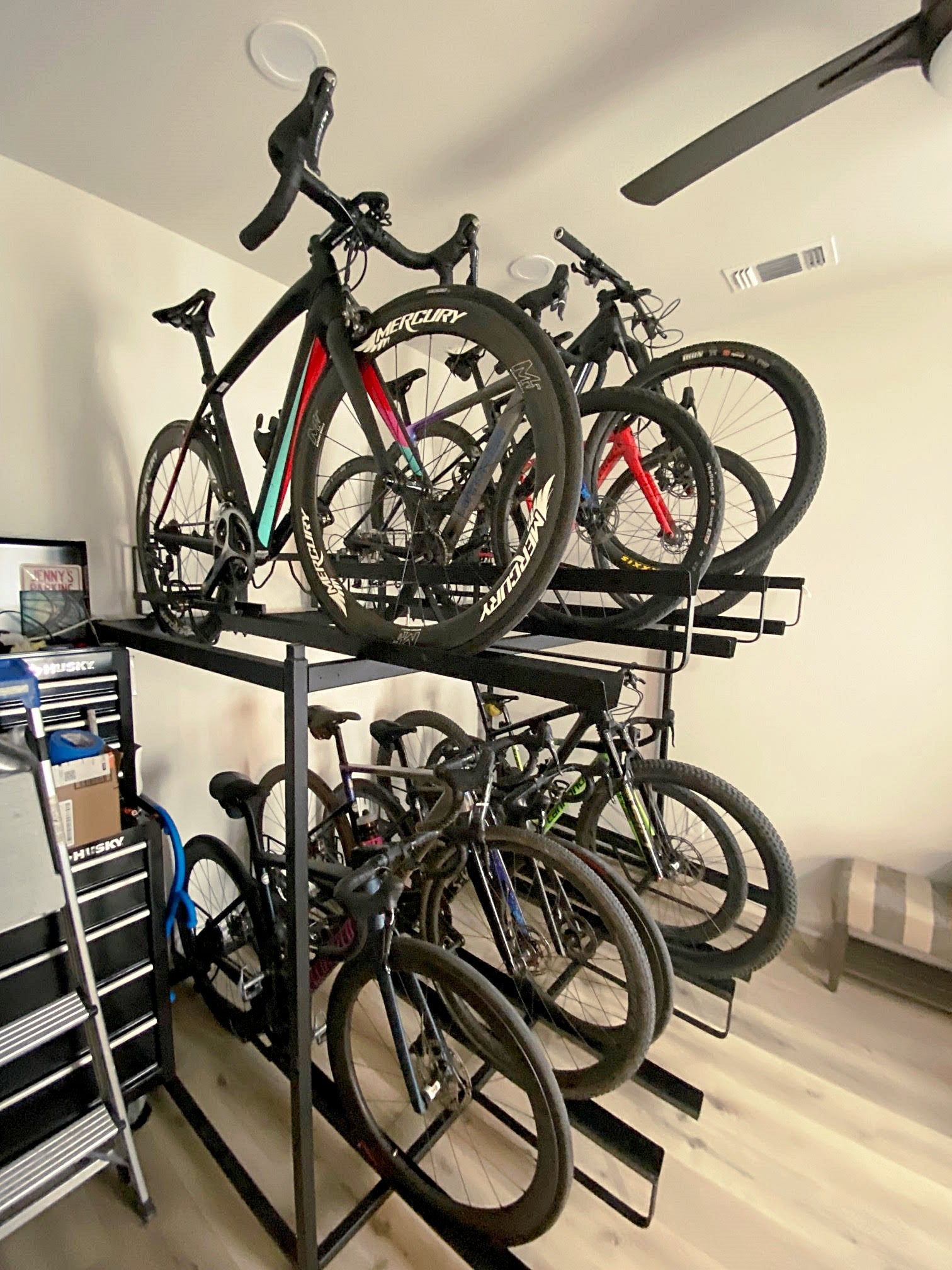

The Wall Double Decker is a modular, high-density display rack built to maximize bike capacity in a compact footprint. Compared to the Straight Forward series, it holds more bikes in the same space, making it ideal for organized, space-efficient merchandising.

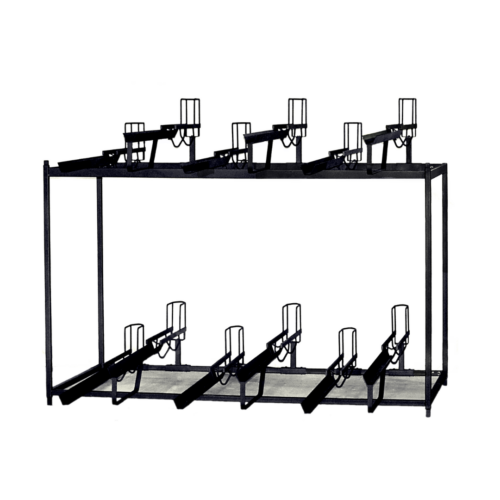

Its no-adjustment tray system keeps bikes upright without leaning and accommodates everything from road bikes to 29ers with tires up to 2.75″ wide. Offset high- and low-tray positioning helps reduce pedal and handlebar interference, and the e-bike-rated bottom tier provides stable placement for heavier models.
This design prioritizes density, so spacing between bikes is intentionally tighter. When displaying bikes with wider handlebars, some shops may need to remove select trays to create additional room. The modular layout makes it easy to adjust tray quantity as inventory changes or display needs evolve.
Recommended minimum ceiling height: 9'. Load limit per upper tier is 320 pounds.
Also available in 3 tier.
Couldn't load pickup availability
Dimensions
Dimensions
2-Tier
| Bikes | Dimensions (Length x Depth x Height) |
|---|---|
| 6 bikes/tier | 7'1" Length x 5'10" Depth x 5'6" Height |
| 7 bikes/tier | 8'2" Length x 5'10" Depth x 5'6" Height |
| 8 bikes/tier | 9'1" Length x 5'10" Depth x 5'6" Height |
***Please allow extra space on either side of the rack for handlebars. Measurements are the footprint of the rack only. Allow 9ft ceilings for 2-tiered racks and 13ft 6in ceilings for any 3-tiered racks.
