Straight Forward
Straight Forward

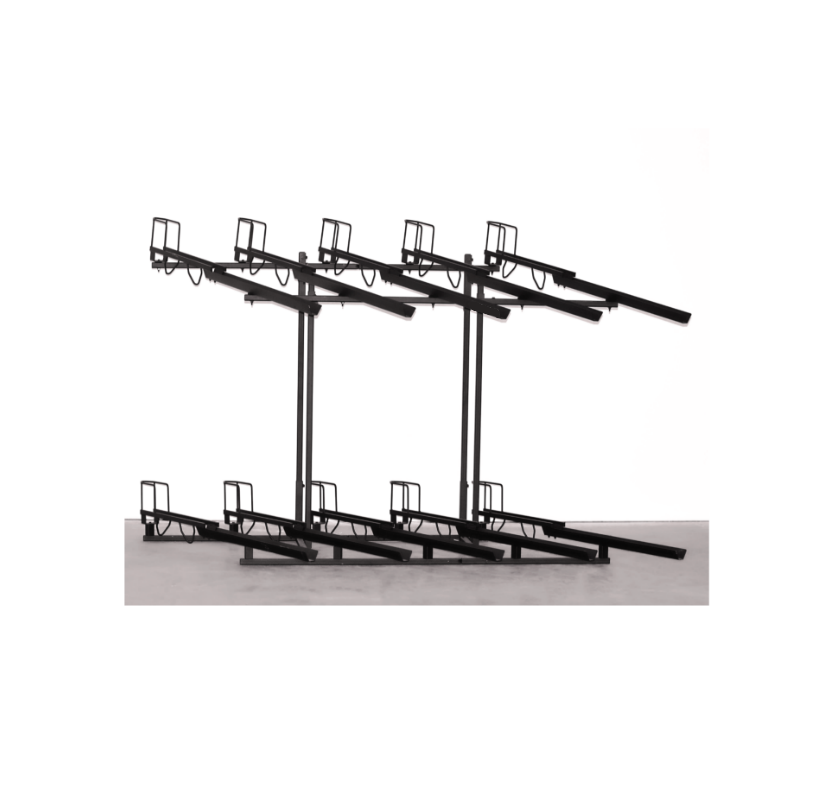

The Straight Forward provides a clean, accessible way to display or store bikes with fixed 30° tray angles to the left or right. Trays are spaced 18" on-center, providing additional room between bikes while maintaining an organized footprint.
Featuring all-steel construction, top-tier trays slope downward for improved visibility, while the flat bottom tier is e-bike rated and accommodates bikes with fenders. The no-adjustment tray design keeps bikes upright without leaning.
Each 70" tray accommodates tires up to 2.75" wide, with a tapered end designed to hold even narrow tires securely.
Recommended minimum ceiling height:
- 2-Tier: 8'6"
- 3-Tier: 14'
Load limit per upper tier: 320 pounds.
Made in the USA
Couldn't load pickup availability
Dimensions
Dimensions
2-Tier
8'6" Ceiling Height Required
| Bikes | Dimensions (L x D x H) |
|---|---|
| 8 bikes (4 per tier) | 7'4" x 5'10" x 5'8" |
| 10 bikes (5 per tier) | 8'9" x 5'10" x 5'8" |
| 12 bikes (6 per tier) | 10'5" x 5'10" x 5'8" |
| 14 bikes (7 per tier) | 11'9" x 5'10" x 5'8" |
| 16 bikes (8 per tier) | 13'5" x 5'10" x 5'8" |
***Please allow extra space on either side of the rack for handlebars. Measurements are the footprint of the rack only.
3-Tier
14'0" Ceiling Height Required
| Bikes | Dimensions (L x D x H) |
|---|---|
| 12 bikes (4 per tier) | 7'4" x 5'10" x 9'0" |
| 15 bikes (5 per tier) | 8'9" x 5'10" x 9'0" |
| 18 bikes (6 per tier) | 10'5" x 5'10" x 9'0" |
| 21 bikes (7 per tier) | 11'9" x 5'10" x 9'0" |
| 24 bikes (8 per tier) | 13'5" x 5'10" x 9'0" |
***Please allow extra space on either side of the rack for handlebars. Measurements are the footprint of the rack only.
