Sloped Double Decker - 2 Tier
Sloped Double Decker - 2 Tier

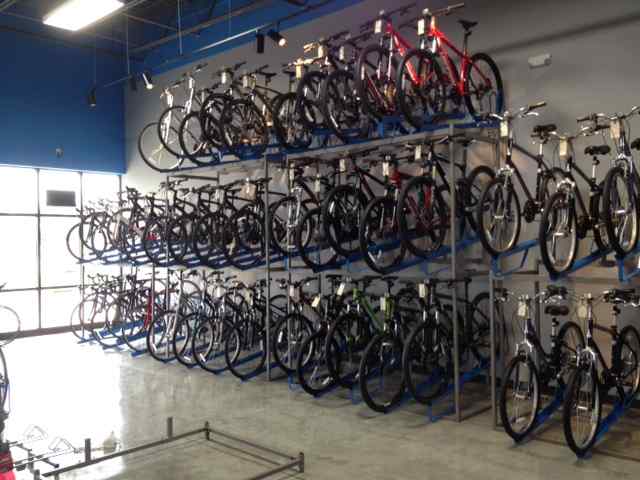

Maximize bike capacity in a compact footprint with the 2-Tier Sloped Double Decker. This all-steel, high-density rack keeps bikes organized while its signature 10-degree angled trays create an eye-catching display.

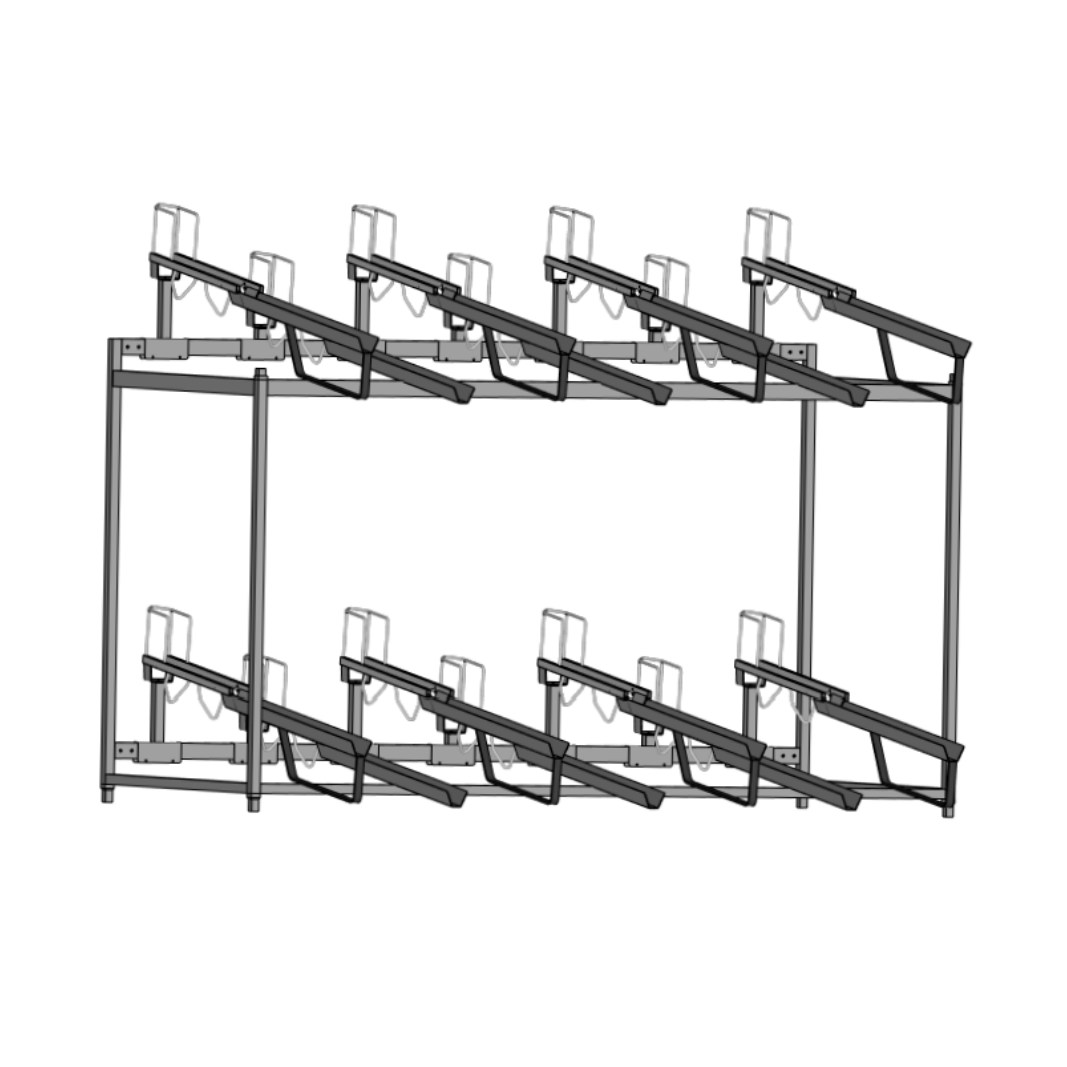

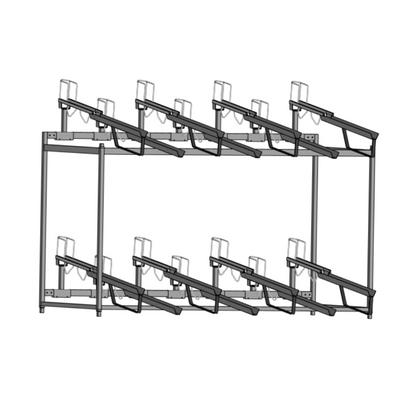

The no-adjustment tray system supports bikes upright with tires up to 2.75" wide, with approximately 13.5" on-center spacing between bikes. Offset high- and low-tray positioning helps minimize pedal and handlebar interference. Trays can be added or removed as inventory or storage needs change. (Also available in 3 Tier.)
Recommended minimum ceiling height: 9'6". Load limit per upper tier: 320 pounds.
Made in the USA
Couldn't load pickup availability
Dimensions
Dimensions
2-Tier
| Bikes | Dimensions (L x D x H) |
|---|---|
| 6 bikes/tier | 7'1" Length x 5'10" Depth x 6'4" Height |
| 7 bikes/tier | 8'2" Length x 5'10" Depth x 6'4" Height |
| 8 bikes/tier | 9'1" Length x 5'10" Depth x 6'4" Height |
***Please allow extra space on either side of the rack for handlebars. Measurements are the footprint of the rack only. Allow 9'6" ceilings for 2-tiered racks and 14' ceilings for any 3-tiered racks.
