Commercial Double Decker HD

Commercial Double Decker HD
  • Commercial Double Decker HD
  • High Density COWDD Layout
  • Condo Wall Double Decker

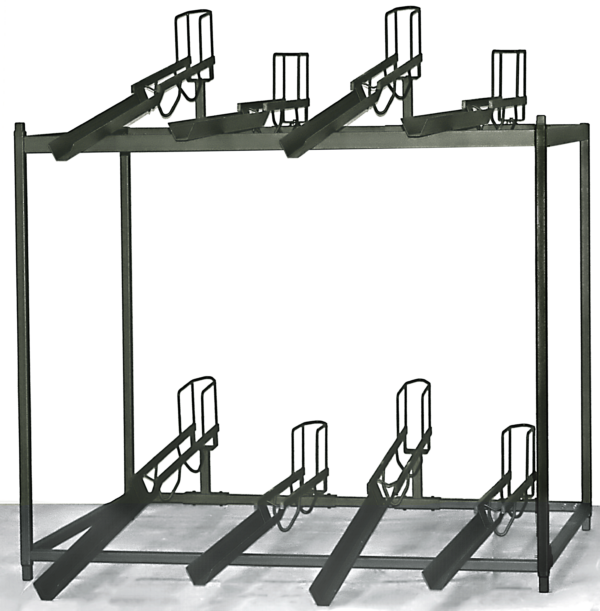

Commercial Double Decker HD

The Commercial Double Decker HD is a high density two tier storage solution and high storage solution designed to make mass bike storage easy.  Flaunting a massive 16 bicycle option this rack is ideal for areas with limited storage space.

  • Bikes are offset to minimize handlebar and pedal interference.
  • Bottom Tier is E-Bike Rated
  • Modular design gives you the freedom to create the exact bike storage solution you need. Adding security is easy with U-Lock compatible lock bars or security leashes.

Space requirements are determined by Rudy Rack standards. ADA requirements and ordinances may vary by location.


** Product no longer offered. **

Choose Options Below:

This product is currently out of stock and unavailable.

SKU: N/A Categories: ,

Description

  • Anchored or Freestanding
  • Holds Tires up to 2-3/4” wide
  • Ceiling Clearance: 102” minimum ceiling height
  • Wall Offset: 13.5” minimum wall offset to center of first bike
  • Spacing Between Trays, On-Center:
    8 Bike = 13.70”
    10 Bike = 13.75”
    12 Bike = 13.75”
    14 Bike = 13.75”
    16 Bike = 13.60”
  • Loading Aisle: Allow 72” for Bikes plus an additional 48” loading aisle
  • Two locking options available
  • Available in Black Powder Coat

Dimensions

Minimum

Capacity Bike Spacing Ceiling Height Dimensions (L x D x H)
8-Bike 13.70” 102” 55” x 70” x 71”
12-Bike 13.75” 102” 84” x 70” x 71”
16-Bike 13.60” 102” 109” x 70” x 71”

Minimum

Capacity Bike Spacing Ceiling Height Dimensions (L x D x H)
8-Bike w/Lock Bar 13.70” 102” 55” x 70” x 82”
12-Bike w/Lock Bar 13.75” 102” 84” x 70” x 82”
16-Bike w/Lock Bar 13.60” 102” 109” x 70” x 82”
